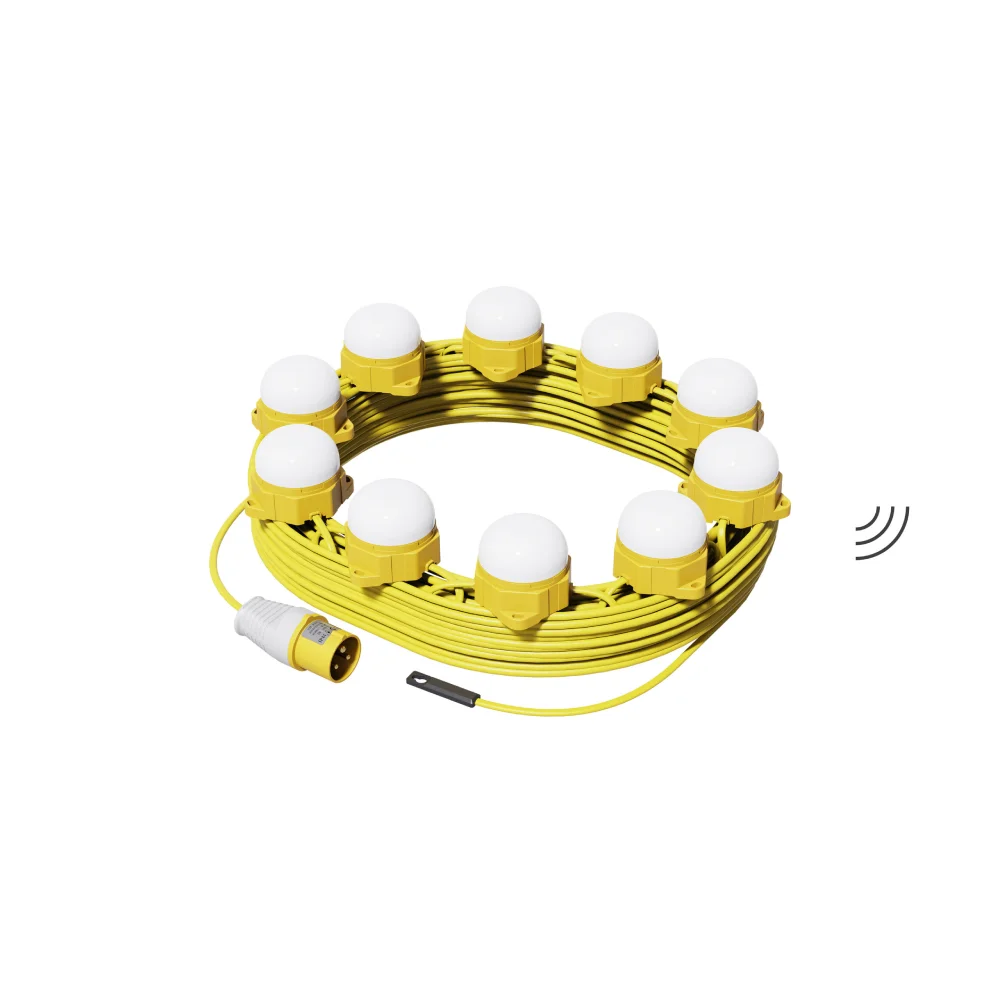

110V 10 Head LED Festoon Kit 22m 16A Motion Sensor (10936)
Product Features:
- Power : 10X6.5Watt =65Watt
- LED : SMD LED
- Input Voltage: AC 110Voltage 50/60Hz
Part Number: 10936
Technical Specifications
| Product Name | 22M Linkable LED Festoon Light String With Motion Detect Sensor |
| Factory Model No | FLS06W/22/10 |
| Product Type | Outdoor or Indoor Lighting |
| IP Rating | IP44 |
| Input Voltage | AC 110V 16A |
| Frequency | 50/60Hz |
| Spacing | 2.2 Mtr |
| Lumen Per Lamp | 650 lm / 6.5 Watt |
| Total Lumen | 6,500 Lumens |
| Color Temperature | 6,400K – 6,500K |
| Working Temperature | -15℃ to 45℃ |
| Color Rendering Index (Ra) | ≥ 80 |
| Light Spread | 360° |
| Protection Class | Class II |
| LED Life Time | 30,000 Hours |
| Energy Class Rating | F |
| Standby Power (Microwave Sensor) | 30% of full power |
| Hold Time (Microwave Sensor) | 1 min (for full bright) |
| Detection Range (Microwave Sensor) | 3 m distance @ 3 meter height |
| Impact Rating | IK08 |
| Lamp Head Material | PC Body + PC Diffuser, Aluminum Heat Sink |
| Main Cable Type | H05VVH2-F |
| Cable Size | 0.75 mm², 2 Core |
| Cable Length | 22 Mtr |
| Cable Color | Yellow |
| Connect Wire | Brown (L), Blue (N) |
| Plug Type | 1 × 110V 16A Yellow Plug (IP44) |
| Connectors | 2-Pin Male & Female (IP65) |
| Installation Method | Hanging Hook or Self-tapping Screws |
| Quantity Per Carton | 1 Pc / Carton |
| Net Weight | Approx. 2.5 KGS |
| Gross Weight | Approx. 3 KGS |
| Outer Box Dimension | 25.5 × 21 × 21 CM |
